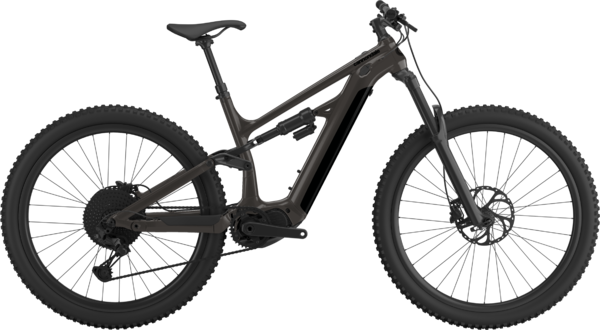

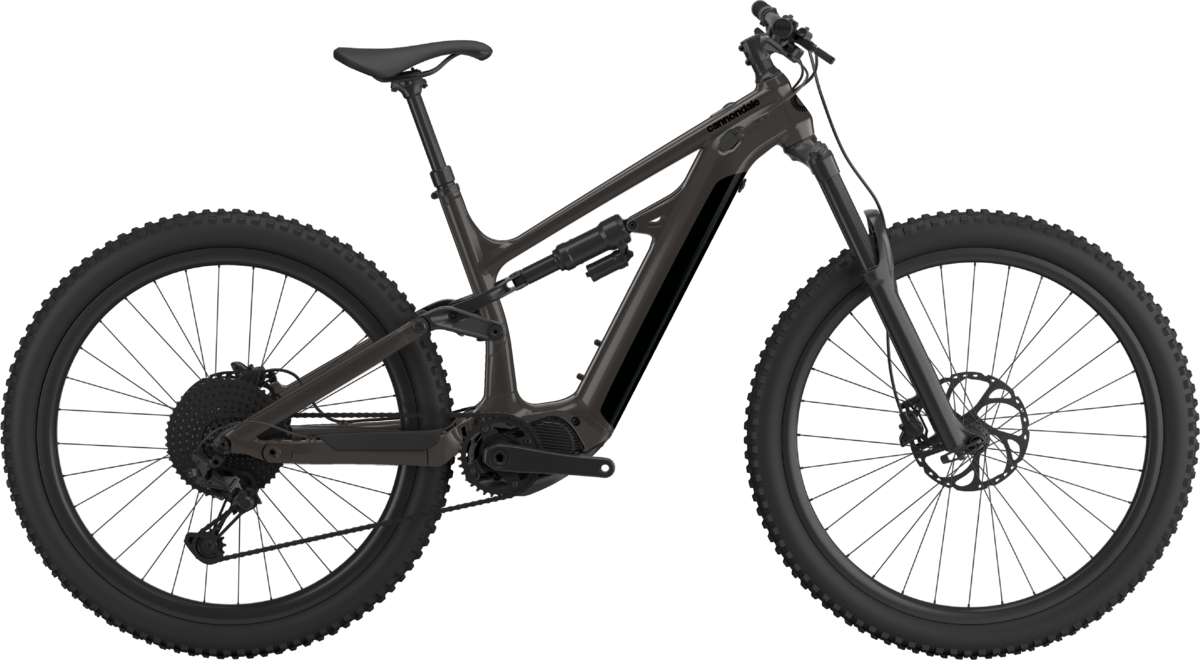

Cannondale Moterra Neo S4
$2,800.00
Details
Pure Power Metal.
A trail-slaying aluminum e-mountain bike, ready to crank up the fun factor on any terrain, anywhere.
Where it thrives
In the mountains
What it's built for
Trail-riding fun
Highlights
- SmartForm C2 Alloy Frame / SR Suntour Zeron 36 fork / 140mm travel
- Shimano Steps EP6 drive system with 504Wh battery
- Shimano CUES 11-speed shifting with hydraulic brakes
| Frame Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Seat Tube Length (cm) | 43 | 45 | 48 | 51 |
| Top Tube Horizontal (cm) | 57.9 | 60.4 | 62.9 | 65.6 |
| Top Tube Actual (cm) | 53.9 | 56.2 | 58.8 | 61.7 |
| Head Tube Angle | 65.0° | 65.0° | 65.0° | 65.0° |
| Seat Tube Angle Effective | 76.0° | 76.0° | 76.0° | 76.0° |
| Seat Tube Angle | 71.0° | 71.0° | 71.0° | 71.0° |
| Standover (cm) | 72.7 | 73.5 | 74.5 | 77 |
| Head Tube Length (cm) | 11.5 | 11.5 | 11.5 | 12.4 |
| Wheelbase (cm) | 120.9 | 123.4 | 125.9 | 128.8 |
| Front Center (cm) | 75.6 | 78.1 | 80.6 | 83.5 |
| Chain Stay Length (cm) | 45.5 | 45.5 | 45.5 | 45.5 |
| Bottom Bracket Drop (cm) | 3 | 3 | 3 | 3 |
| Bottom Bracket Height (cm) | 35 | 35 | 35 | 35 |
| Fork Rake (cm) | 5.1 | 5.1 | 5.1 | 5.1 |
| Trail (cm) | 12.1 | 12.1 | 12.1 | 12.1 |
| Stack (cm) | 61.7 | 61.7 | 61.7 | 62.6 |
| Reach (cm) | 42.5 | 45 | 47.5 | 50 |
| Frame Size | Rider Height (in) |
|---|---|
| Small | 5'1" - 5'5" |
| Medium | 5'4" - 5'9" |
| Large | 5'8" - 6'1" |
| X-Large | 6'0" - 6'5" |
Specs
| Frame | 150mm travel, SmartForm C2 Alloy, Cannondale Tuned Suspension, removable downtube battery, internal cable routing, 148x12mm thru-axle, post mount brake, tapered headtube |
|---|---|
| Fork | SR Suntour Zeron 36 Boost, 140mm, Air, rebound adjust,tapered steerer, 44 mm offset |
| Rear Shock | X-Fusion O2 Pro Air, adjustable rebound, lock-out |
| Rims | WTB STX i25 TCS, 32h |
| Hubs |
Front: Shimano TC500, 15x110mm thru-axle, centerlock Rear: Shimano TC500, 12x148mm thru-axle, centerlock |
| Spokes | Stainless Steel, 14g |
| Tires | WTB Breakout Comp, 29x2.3", DNA compound |
| Crankset | FSA E-Bike for Shimano, 165mm, 34T |
| Shifters | Shimano CUES U6000, trigger style, 11-speed |
| Rear Derailleur | Shimano CUES U6000, 11-speed |
| Cassette/Freewheel | Shimano CUES LG400, 11-50, 11-speed |
| Chain | Shimano LG500 Linkglide, 11-speed |
| Brakes | Shimano MT200 hydraulic disc, 180/180mm RT10 rotors |
| Brake Levers | Shimano MT200 hydraulic disc |
| Handlebars | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Tape/Grips | Cannondale Locking Grips |
| Stem | Cannondale 3, 3D Forged 6061 Alloy, 1-1/8", 31.8, 6° |
| Headset | Integrated, 1-1/8 to 1.5", sealed bearings |
| Seatpost | TranzX dropper, internal routing, 31.6, 120mm (S), 130mm (M-XL) |
| Saddle | Cannondale Stage 3 |
| Pedals | Sold Separately |
| Motor | Shimano EP6 |
| Battery | Shimano BT-EN8035, 504Wh |
| Controller/Display | Shimano SC-EN500 |
| Charger | Shimano Battery Charger 2A |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Smoke Black / Small / 29-inch | 884603975145 | C65243U10SM | |
| Smoke Black / Medium / 29-inch | 884603975152 | C65243U10MD | |
| Smoke Black / Large / 29-inch | 884603975169 | C65243U10LG | 210000057333 |
| Smoke Black / X-Large / 29-inch | 884603975176 | C65243U10XL |
